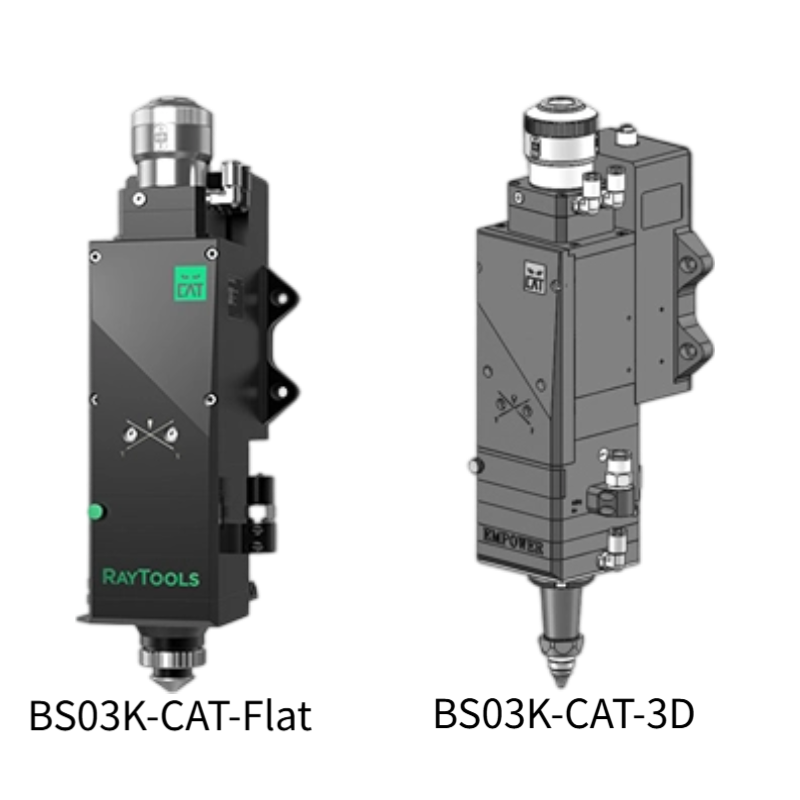

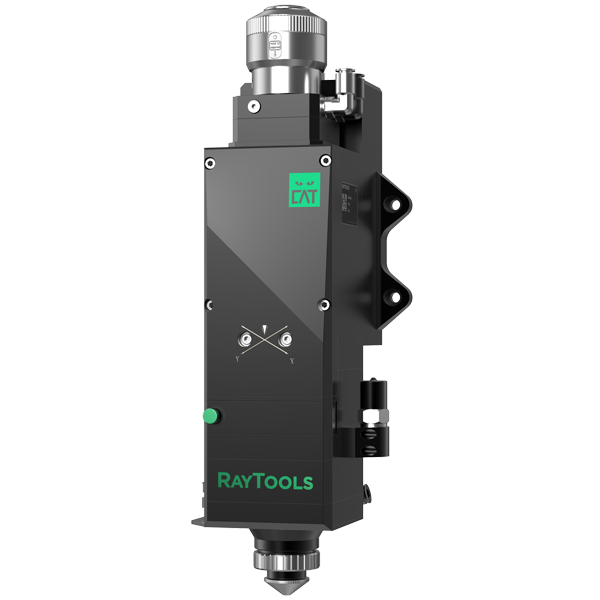

Vikzion Raytools BS03K-CAT 3000W Intelligent Laser Cutting Head
Product Features:
- Dual optical protection：Three sets of protective lenses extend the lifespan of the core lens, and multiple protections enhance the sealing level inside the core cavity.
- Standard pressure sensor/protective mirror temperature monitoring sensor
- Optimize mechanical/waterway design.
- Collimate focusing：Faster focusing speed, wider focusing range, more efficient perforation, and support for small nozzle full power carbon steel cutting process.
- Optimized optical and airflow design：Significantly improve the speed and effectiveness of air cutting, increasing by 10% -40% compared to conventional cutting heads.
- Built in capacitor amplifier：Optional built-in capacitor amplifier for more precise and stable tuning.
1.Product Introduction
BS03K-CAT series is a low to medium power cutting head with a power level of 3kW. The product is equipped with QBH fiber optic interface and can be adapted to various mainstream lasers. EtherCAT bus communication and bus control focusing unit, users can achieve continuous and fast focusing through program settings.
2.Technical parameters
Model | BS03K |
Wavelength | 1080nm |
Fiber Interface | QBH |
Power Rating | 3kW |
Collimation Length (fC) | 100mm |
Focusing Length (fF) | 150mm |
NA max | 0.13 |
Auto Focus Range | -22mm～+22mm |
Beam Alignment Range | -1.5mm～+1.5mm |
Mounting Size of Cutting Head | 4×M6 |
Mounting Size of Preamplifier | 4×M3 |
Cutting Gas | φ10,max.25bar |
Nozzle Cooling Gas | φ8, max.5bar |
Water Cooling | φ6, max.5bar, min.1.5L/min |
Operating Voltage | 24V±10%, max.4A |
l/0 Interface (19-Pin) | Output current must be less than 30mA |
Operating Temperature | 5℃～55℃ |
Humidity | 30%～95%,without condensing |
Weight | About 5kg |
3.Product advantages
①Dual optical protection
Three sets of protective lenses extend the lifespan of the core lens, and multiple protections enhance the sealing level inside the core cavity.
②Standard pressure sensor/protective mirror temperature monitoring sensor
More precise gas control and more stable cross-sectional quality; Gas protection, foolproof design, reducing the probability of lens contamination; One click intelligent calibration of air pressure, making nozzle/process replacement more convenient and worry free.
③Optimize mechanical/waterway design
Simplify the installation method of lenses, reduce the difficulty and cost of maintenance and repair; The BS series comes standard with anti-corrosion technology to prevent long-term use of water-cooled corrosion and water leakage.
④Collimate focusing
Faster focusing speed, wider focusing range, more efficient perforation, and support for small nozzle full power carbon steel cutting process.
⑤Optimized optical and airflow design
Significantly improve the speed and effectiveness of air cutting, increasing by 10% -40% compared to conventional cutting heads.
⑥Built in capacitor amplifier
Optional built-in capacitor amplifier for more precise and stable tuning.
