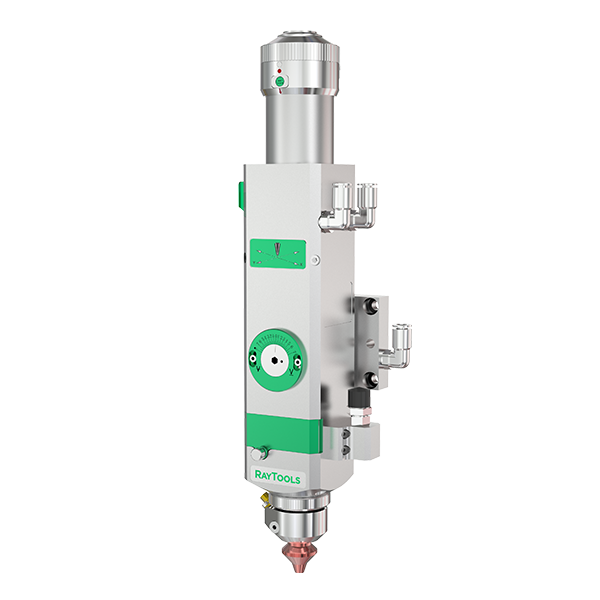

Vikzion Raytools BT210S 1500W manual focusing cutting head
Product Features:
- Compact modular design
- Different optic lens options
- 100mm focal length option , effectively improves the cutting speed of thin plate
- Quick and easy access to the cover slide
- Built-in annular and lateral gas flow, easy to cut high-reflective
- materials and preventing thick plate from blasting and sputtering
- guiding adjustments of optical input
- A variety of flexible optical fiber connectors
- Reliable sealing design
1.Product Introduction
BT210S is a low to medium power cutting head with a power level of 1.5kW. The product is equipped with QBH fiber optic interface and can be adapted to various mainstream lasers. Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.
2.Technical parameters
| power level | 1500W |
| Optical aperture | 21mm |
| Auxiliary gas pressure | ≤20bar |
| weight | 3.5kg |
| Applicable wavelength | 1064nm |
| Optical ratio | 75:100, 75:125, 100:100, 100:125 |
| Focus adjustment range | Horizontal -1~+1mm; Vertical -5.5~+5.5mm |
| Cutting gas | Maximum value of 25 bar |
| Water cooling (upstream and downstream) | Maximum value of 5 bar, minimum volume flow rate of 1.8 L/min |
3.Product advantages
①High cost-effectiveness
The preferred choice for economical laser cutting equipment with a power of 1500W or less. Focus adjustment range -5.5mm~+5.5mm
②Excellent design
Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.
③High adaptability
Equipped with multiple fiber interfaces such as QBH and QCS, it can be adapted to various mainstream lasers.
④Exquisite structure
Lightweight and compact in size, it reduces the load requirements of machine tools, improves cutting speed and quality, and is suitable for industrial robot loads
⑤Manual focusing
Manually adjust the focus position, easy to operate, special flat cutting nozzle, easy to replace.
