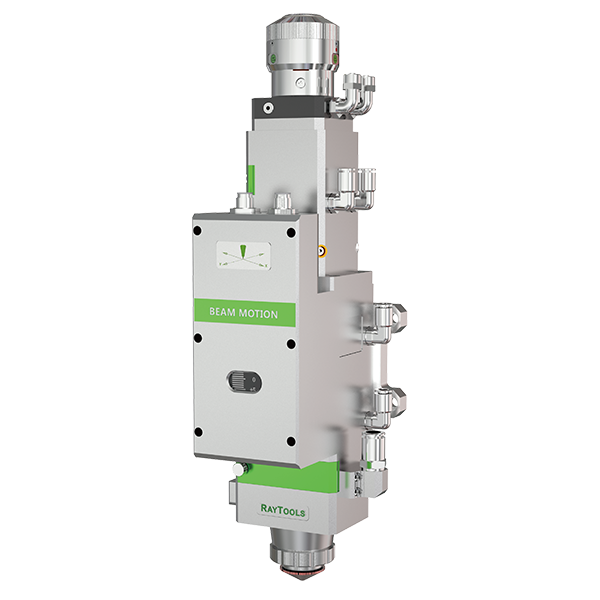

Vikzion Raytools BM110 3000W automatic focusing cutting head
Product Features:
- Optimized optical configuration and smooth and efficient airflow design.
- Automatic focusing range + 10 ~ -12mm, adjustment accuracy 0.05mm.
- Equipped with D30 composite lens groups, the maximum fiber power is up to 3KW.
- Maximum acceleration of focus lens driver 10m / s², maximum speed 6m / min.
- The drawer-type of lens mount makes the replacement of protective lens more quickly and easier.
- The composite lens groups are used for beam collimating and focusing to obtain the best optical quality and cutting effect.
- Equipped with QBH, QD and other fiber interfaces can match with various fiber lasers.
1.Product Introduction
BM110 is a low to medium power cutting head with a power level of 3.3kW. The product is equipped with multiple fiber interfaces such as QBH, QD, G5, etc., and can be adapted to various mainstream lasers. Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency
2.Technical parameters
Automatic focusing range | -12mm～+10mm |
Automatic focusing speed | ≤170mm/s |
Automatic focusing acceleration | ≤10m/s² |
Automatic focusing accuracy | 0.05mm |
Optical aperture | 28mm |
Auxiliary gas pressure | ≤30bar |
weight | About 5.0kg |

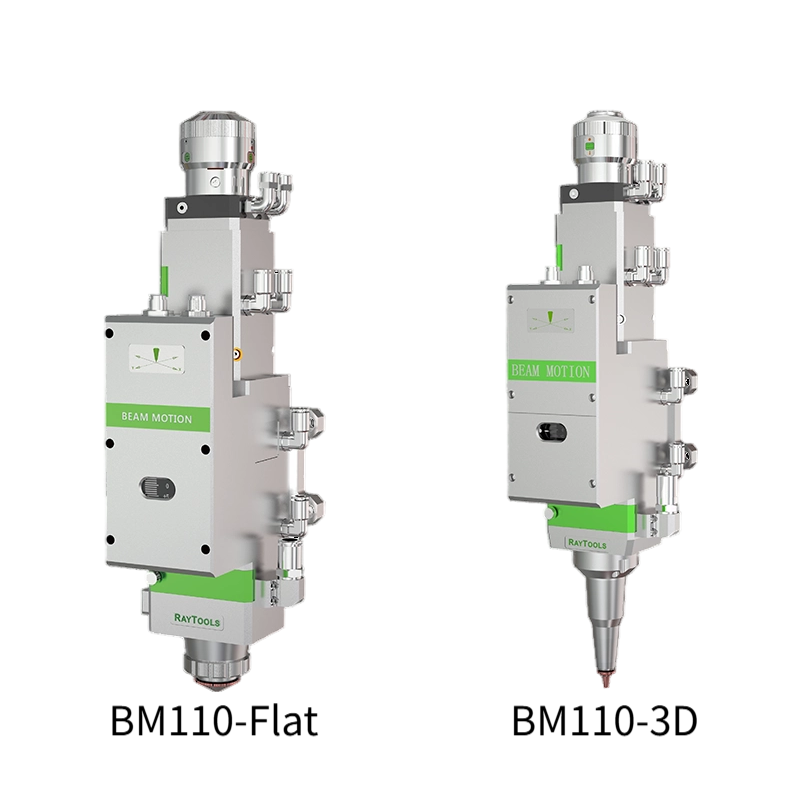

Nozzle specifications | Flat:D32*M14, 3D:D15*M8 |
3.Product advantages
①Excellent design
Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.
②Multiple protective lenses
Collimation increases the protective lens, effectively protecting the collimated lens.
③Drawer style mirror holder
The replacement of protective lenses is fast and simple.
④Automatic focusing
Automatic focusing, reducing human intervention, with an automatic focusing range of -12~+10mm and a focusing accuracy of 0.05mm.
⑤High adaptability
Equipped with multiple fiber interfaces such as QBH and QD, it can be adapted to various mainstream lasers.
