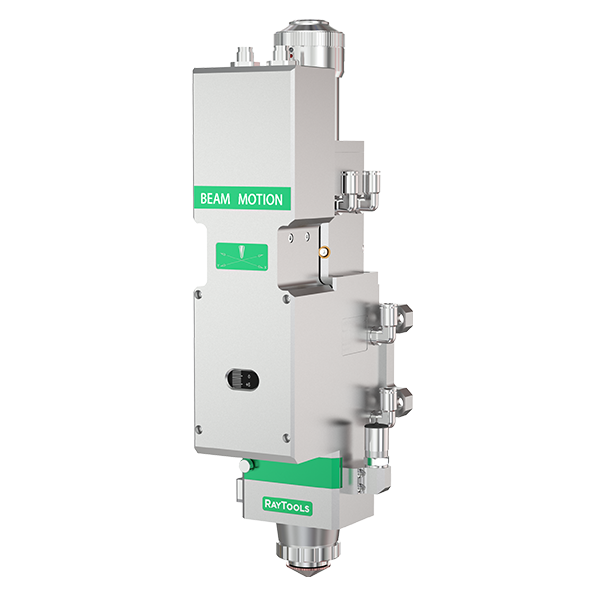

Vikzion Raytools BM111 3000W automatic focusing laser cutting head
Product Features:
- Optimized optical configuration and smooth and efficient airflow design;
- Automatic focusing range + 10 ~ -12mm, adjustment accuracy 0.05mm;
- Equipped with D30 composite lens groups, the maximum fiber power is up to 3KW;
- Maximum acceleration of focus lens driver 10m / s2, maximum speed 10m / min;
- The drawer-type of lens mount makes the replacement of protective lens more quickly and easier;
- The composite lens groups are used for beam collimating and focusing to obtain the best optical quality and cutting effect;
- Equipped with QBH, QD and other fiber interfaces can match with various fiber lasers.
1.Product Introduction
BM111 is a low to medium power cutting head with a power level of 3kW. The product is equipped with multiple fiber interfaces such as QBH, QD, G5, etc., and can be adapted to various mainstream lasers. Optimized optical configuration and smooth and efficient airflow design, coupled with servo drives, significantly improve cutting speed, quality, and efficiency.
2.Technical parameters
Automatic focusing range | -12mm～+10mm |
Automatic focusing speed | ≤170mm/s |
Automatic focusing acceleration | ≤10m/s² |
Automatic focusing accuracy | 0.05mm |
Optical aperture | 28mm |
Auxiliary gas pressure | ≤30bar |
weight | F155:5.8Kg; F125:5.5Kg; F200:6.1Kg |
Nozzle specifications | Flat:D32*M14; 3D:D15*M8 |
3.Product advantages
①Highly dustproof
IP65 dustproof rating, dust-proof without dead corners.
②Multiple protective lenses
3 protective lenses, efficiently protecting the collimating and focusing lenses.
③Automatic focusing
Automatic focusing, reducing human intervention, with an automatic focusing range of -12~+10mm and a focusing accuracy of 0.05mm.
④High speed cutting
12mm thick SUS304 cutting speed 0.7m/ min@3000W ， 12mm thick Q235 cutting speed 1.2m/ min@3000W .
