1.Product Introduction

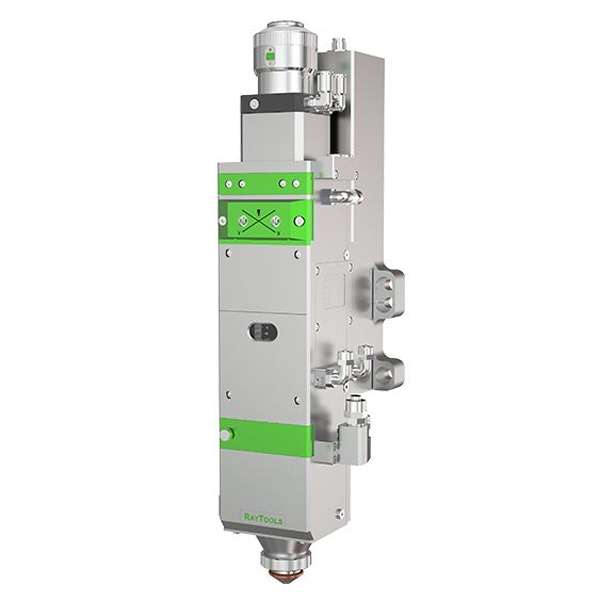

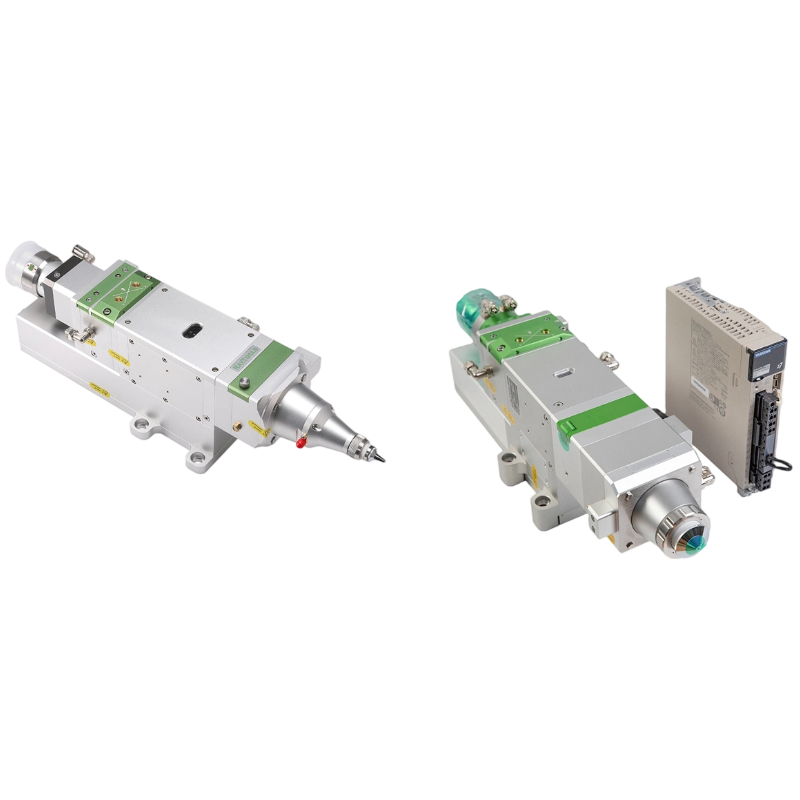

BM114S is an automatic focusing fiber cutting head. The product is equipped with an external servo motor and an internal drive unit, which drives the focusing lens to automatically change its position within a range of about 25mm through a linear mechanism. Users can set continuous focusing through the program to achieve rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials. This product is equipped with a D37 composite lens group to integrate the light beam, with diversified interface settings that enable it to be paired with various fiber lasers; The optimized design of optics and water cooling enables the laser head to operate stably for a long time at high power.

2.Technical parameters

3.Product advantages

①Efficient cooling

Both the collimating lens and the focusing lens group have cooling structures, and the nozzle cooling airflow is increased to effectively protect the nozzle and ceramic body, extending the continuous working time.

②Automatic focusing

Automatic focusing, reducing human intervention, focusing speed of 10m/min, repeat accuracy of 50um.

③Lightweight and efficient

Weighing only 5.6KG, the structure is compact, reducing the mechanical requirements of the machine tool.

④Datong aperture

The aperture is 35mm, effectively reducing stray light interference, ensuring cutting quality and service life.

⑤High endurance power

Paired with D37 optical lens group, it can withstand a power of up to 6KW, making thick plate cutting more effortless.

⑥Rapid perforation and high-speed cutting

Pre perforation time of 25mm carbon steel plate<3s @ 3000W, greatly improving cutting efficiency.
