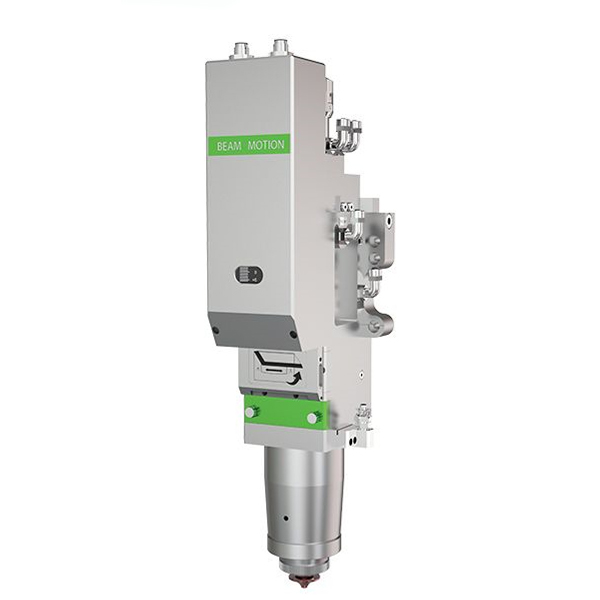

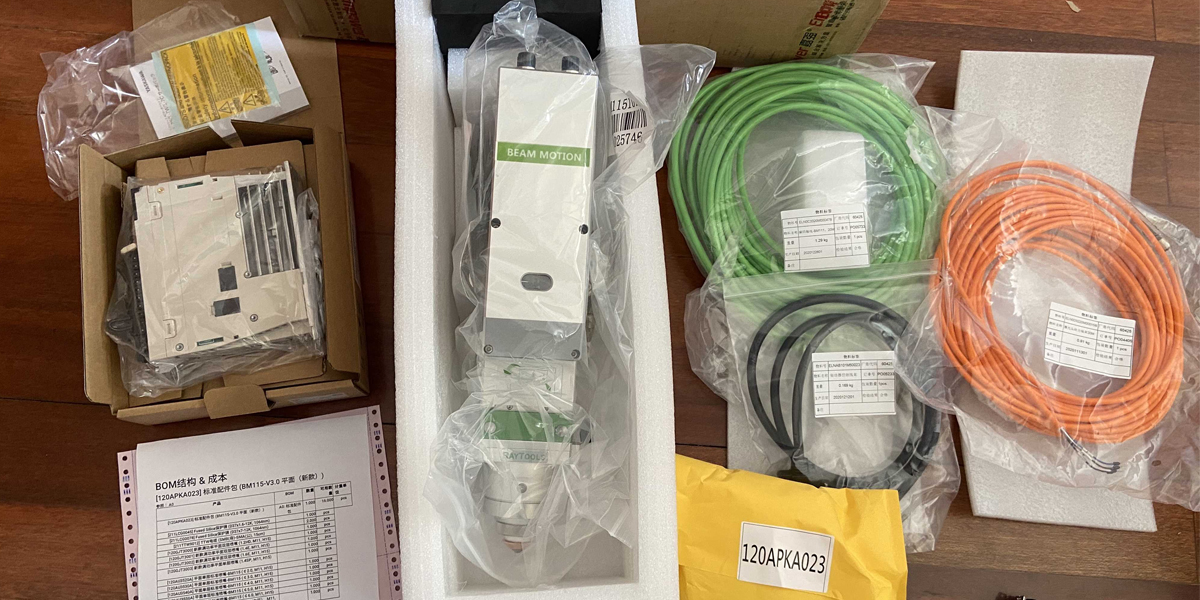

Vikzion Raytools BM115 6000W automatic focusing laser cutting head
Product Features:
- Datong aperture：By using a light path of 35/36.1mm, the interference of stray light is effectively reduced, ensuring cutting quality and service life.
- Quick focusing：Adopting collimated focusing, compared to focusing focusing, the focus moves faster and has a larger focusing range.
- Rapid perforation and high-speed cutting：Pre perforation time of 25mm carbon steel plate< 1S@6000W Significantly improve cutting efficiency.
- Efficient cooling：Both the collimating lens and the focusing lens group have cooling structures, and the nozzle cooling airflow is increased to effectively protect the nozzle and ceramic body, extending the continuous working time.
- Optimize structural design：Integrated body design ensures sealing. Improve the OBH QD Q+fiber interface, enhance compatibility with lasers, and no longer get stuck due to water leakage or rust.
1.Product Introduction
The BM115 series is a new 6KW automatic focusing laser cutting head launched by Swiss RayTools in 2019. This product has a built-in motor and drive unit, which drives the collimator mirror to move through a linear mechanism to change the focal position. Compared to the old model that drives the focus lens to move, the collimator lens moves faster to change the focus speed and has a larger focusing range. Users can set continuous focusing through the program to achieve rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials. This product is equipped with a composite lens group with a large aperture to integrate the light beam, and diversified interface settings enable it to be matched with various fiber lasers; The optimized optical design and water cooling design enable the laser head to operate stably for a long time at high power.
2.Technical parameters
Automatic focusing range | +22～-22mm;+44～-44mm |
Automatic focusing speed | ≤10m/min |
Automatic focusing acceleration | ≤10m/s² |
Automatic focusing accuracy | 50μm |
fiber optic interface | QBH,QD |
Optical aperture | 35mm |
Gas pressure | ≤30bar |
Collimator focal length | 100mm |
Focal length of focusing lens | 150mm，200mm |
Nozzle specifications | D28*M11 |
weight | About 5.6kg |
3.Product advantages
①Datong aperture
By using a light path of 35/36.1mm, the interference of stray light is effectively reduced, ensuring cutting quality and service life.
②Quick focusing
Adopting collimated focusing, compared to focusing focusing, the focus moves faster and has a larger focusing range.
③Rapid perforation and high-speed cutting
Pre perforation time of 25mm carbon steel plate< 1S@6000W Significantly improve cutting efficiency.
④Efficient cooling
Both the collimating lens and the focusing lens group have cooling structures, and the nozzle cooling airflow is increased to effectively protect the nozzle and ceramic body, extending the continuous working time.
⑤Optimize structural design
Integrated body design ensures sealing. Improve the OBH QD Q+fiber interface, enhance compatibility with lasers, and no longer get stuck due to water leakage or rust.
