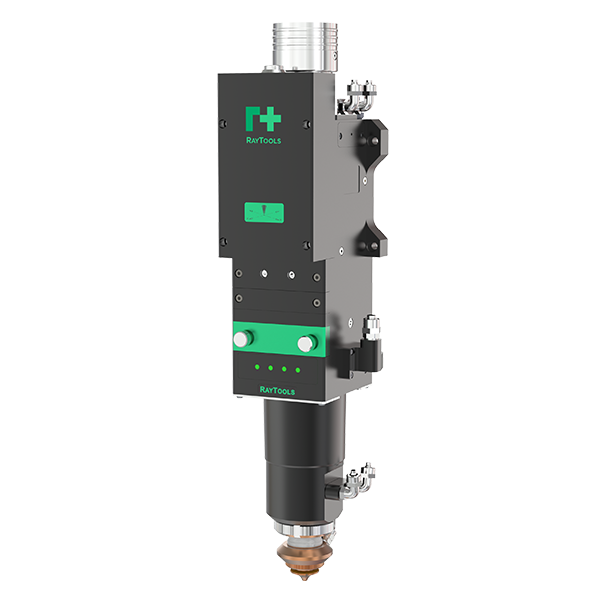

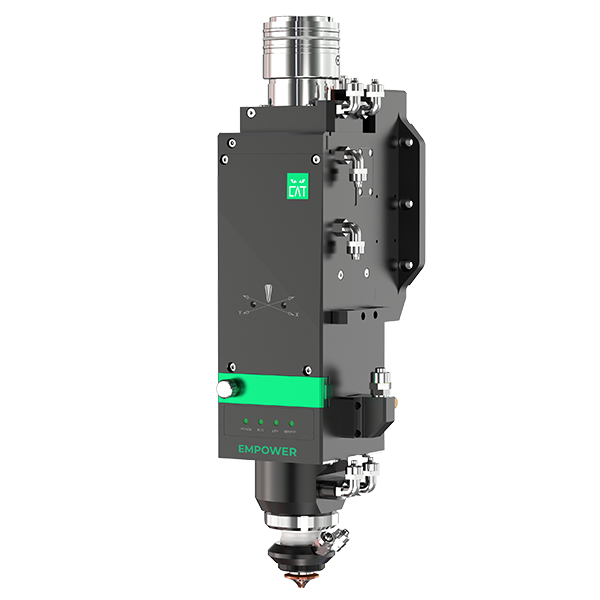

Vikzion Raytools BS20K 20000W Smart Laser Cutting Head
Product Features:
- Excellent Design：The lightweight design improves machine acceleration. Traditional air cooling of the nozzle is eliminated (no air compressor required). Utilizing a smooth, high-speed airflow design, lens optical shaping, and a domestically advanced nozzle water-cooling structure, the machine significantly improves stability, surface quality, and efficiency during steel plate cutting.
- Flexible Control：Supports analog control of the focusing unit or EtherCAT bus communication and bus-controlled focusing unit, allowing users to achieve continuous and rapid focus position adjustment through program settings.
- Real-Time App Monitoring：Monitoring data can be accessed via wireless networks on mobile devices and CNC systems.
- High Compatibility：Equipped with QBH, QD, Q+, and LOE fiber interfaces, the machine is compatible with a variety of mainstream lasers.
- Real-Time Parameter Feedback：Built-in sensors provide real-time feedback on process parameters such as the temperature of the protective lens within the cutting head, the temperature of the focusing lens, the chamber temperature and humidity, the chamber pressure, and the cutting gas pressure.
1.Product Introduction
The BS20K is a high-power cutting head with a power rating of 20kW. It offers both non-bus and ECAT bus control options. It features a variety of fiber interfaces, including QBH, QD, Q+, and LOE, making it compatible with a wide range of mainstream lasers. It also incorporates various built-in intelligent sensors, enabling real-time data reading on mobile devices and CNC systems via wireless networks.
2.Technical parameters
Fiber Optic Interface | QBH, LOE, QD, Q+ |
Applicable Wavelength | 1080nm |
Power | ≤20kW |
Value | 0.14 |
Optical Ratio | 100:300 |
Autofocus Speed | ≤200mm/s |
Autofocus Acceleration | ≤10m/s² |
Autofocus Accuracy | 0.01mm |
Horizontal Focus Adjustment Range | -1.5mm to +1.5mm |
Vertical Focus Adjustment Range | -72mm to +72mm |
Operating Voltage | 24V ±10%, Minimum 3A |
I/O Interface | Switch Output Current Limited to 30mA |
Nozzle Specifications | D28*M11 (Flat Model); |
Weight | Approximately 8.3kg to 8.7kg |
3.Product advantages
①Excellent Design
The lightweight design improves machine acceleration. Traditional air cooling of the nozzle is eliminated (no air compressor required). Utilizing a smooth, high-speed airflow design, lens optical shaping, and a domestically advanced nozzle water-cooling structure, the machine significantly improves stability, surface quality, and efficiency during steel plate cutting.
②Flexible Control
Supports analog control of the focusing unit or EtherCAT bus communication and bus-controlled focusing unit, allowing users to achieve continuous and rapid focus position adjustment through program settings.
③Real-Time App Monitoring
Monitoring data can be accessed via wireless networks on mobile devices and CNC systems.
④High Compatibility
Equipped with QBH, QD, Q+, and LOE fiber interfaces, the machine is compatible with a variety of mainstream lasers.
⑤Real-Time Parameter Feedback
Built-in sensors provide real-time feedback on process parameters such as the temperature of the protective lens within the cutting head, the temperature of the focusing lens, the chamber temperature and humidity, the chamber pressure, and the cutting gas pressure.
