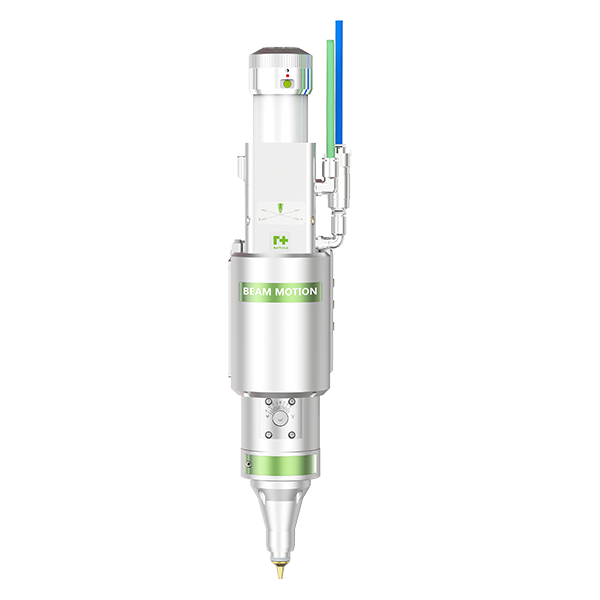

Vikzion Raytools GF101 4000W Robot Laser Cutting Head
Product Features:
- High Adaptability：Optimized optical configuration and smooth, efficient airflow design meet diverse thin plate cutting and other customized 3D laser cutting environments.
- Lightweight, Integrated Design:：The lightweight, integrated design weighs only approximately 3.5 kg, reducing robot load.
- Highly Sealed：Reliable sealing and a modular, slender nozzle design minimize workpiece interference, reduce downtime, and extend machine life.
- Built-in Follow-up Function：This product features a built-in follow-up unit that uses a linear mechanism to automatically adjust the focus follow-up module within a specified range.
- Highly Dustproof：A protective mirror on the collimator lens, mounted in a drawer-style mount, effectively prevents damage to the collimator lens due to dust.
1.Product Introduction
The GF101 series is a fiber optic cutting head suitable for low- to medium-power 3D cutting applications. This head features a built-in motor drive unit, which uses a linear mechanism to drive the focus follower module to automatically adjust position within a 20mm range. Combined with an optimized optical focusing system, a circular gas path, and a lightweight design, it delivers long-term, stable operation in diverse 3D laser cutting environments, meeting diverse plate cutting and other customized requirements.
2.Technical parameters
Manual focus range | -9mm to +7mm |
Focusing accuracy | 0.05mm |
Travel range | 15mm |
Fiber optic connectors | QBH, QD |
Clear aperture | 28mm |
Collimator focal length | 75mm, 100mm |
Focusing lens focal length | 125mm, 150mm |
Collimator protection lens | 24.9*15mm |
Focusing protection lens | 27.9*4.1mm |
Assist gas pressure | ≤25bar |
Weight | Approximately 3.5kg |
3.Product advantages
①High Adaptability
Optimized optical configuration and smooth, efficient airflow design meet diverse thin plate cutting and other customized 3D laser cutting environments.
②Lightweight, Integrated Design:
The lightweight, integrated design weighs only approximately 3.5 kg, reducing robot load.
③Highly Sealed
Reliable sealing and a modular, slender nozzle design minimize workpiece interference, reduce downtime, and extend machine life.
④Built-in Follow-up Function
This product features a built-in follow-up unit that uses a linear mechanism to automatically adjust the focus follow-up module within a specified range.
⑤Highly Dustproof
A protective mirror on the collimator lens, mounted in a drawer-style mount, effectively prevents damage to the collimator lens due to dust.
