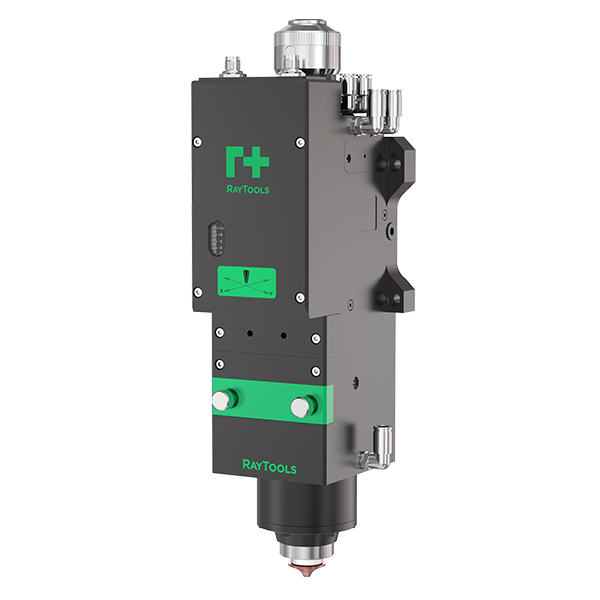

Vikzion Raytools BM06K 6000W automatic focusing laser cutting head
Product Features:
- Efficient cooling：Both the collimating lens and the focusing lens group have cooling structures, and the nozzle cooling airflow is increased to effectively protect the nozzle and ceramic body, extending the continuous working time.
- Quick focusing：Adopting collimated focusing, compared to focusing focusing, the focus movement speed is faster and the focusing range is larger.
- Intelligent monitoring：Equipped with a protective lens temperature monitoring function, temperature data can be displayed in real-time through a mobile app or computer desktop window, with over temperature output alarm, effectively protecting the cutting head optical path system.
- Multiple protective lenses：Design four protective lenses to effectively reduce pollution caused by replacing optical fibers and lower protective lenses, and extend the service life of collimating and focusing lenses.
- Optimize structural design：Integrated body design ensures sealing. Improve QBH, QD, G5 fiber optic interfaces to enhance compatibility with lasers and prevent jamming due to water leakage, rust, and other reasons.

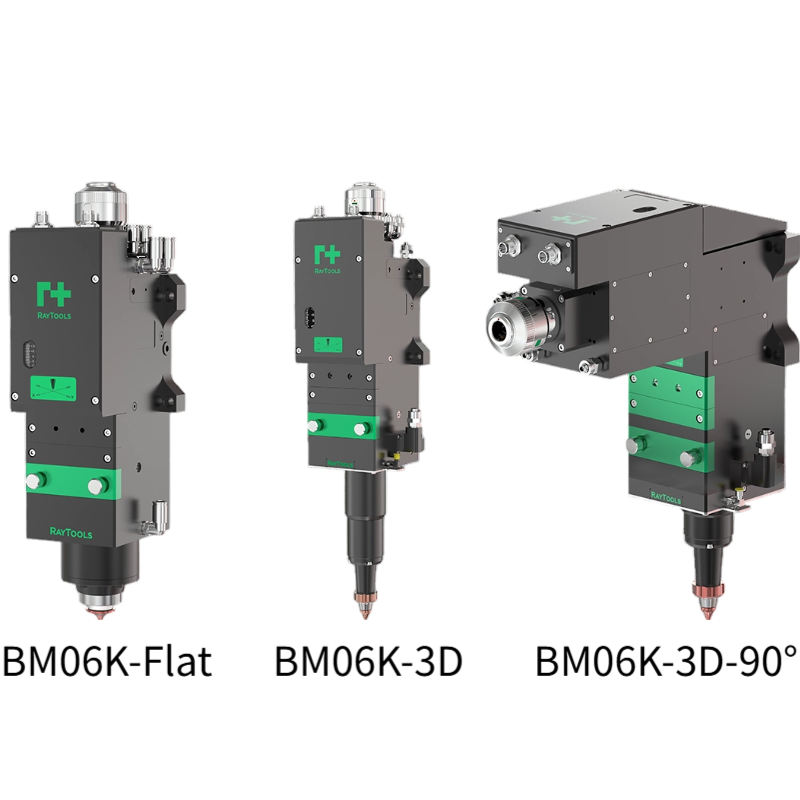

1.Product Introduction
The BM06K series is a medium to high power cutting head with a power level of 6kW. The product is equipped with multiple fiber optic interfaces such as QBH, QD, G5, etc. It can be adapted to various mainstream lasers and has a protective lens temperature monitoring function
2.Technical parameters
fiber optic interface | QBH、G5 |
Applicable wavelength | 1080nm |
laser power | s6kW |
Collimator focal length | 100mm |
Focal length of focusing lens | 150mm，200mm |
Focus adjustment level range | -1.5~+1.5mm |
Focus adjustment vertical range | -17~+17mm/-32~+32mm |
Working Voltage | 24V+10%，Max 4A |
I/0 interface | The output current of the switch is limited to within 30mA |
Operating Temperature | 5℃~55℃ |
humidity | 30%~95%，No frost |
weight | About 6.5kg~7.0k |
3.Product advantages
①Efficient cooling
Both the collimating lens and the focusing lens group have cooling structures, and the nozzle cooling airflow is increased to effectively protect the nozzle and ceramic body, extending the continuous working time.
②Quick focusing
Adopting collimated focusing, compared to focusing focusing, the focus movement speed is faster and the focusing range is larger.
③Intelligent monitoring
Equipped with a protective lens temperature monitoring function, temperature data can be displayed in real-time through a mobile app or computer desktop window, with over temperature output alarm, effectively protecting the cutting head optical path system.
④Multiple protective lenses
Design four protective lenses to effectively reduce pollution caused by replacing optical fibers and lower protective lenses, and extend the service life of collimating and focusing lenses.
⑤Optimize structural design
Integrated body design ensures sealing. Improve QBH, QD, G5 fiber optic interfaces to enhance compatibility with lasers and prevent jamming due to water leakage, rust, and other reasons.
