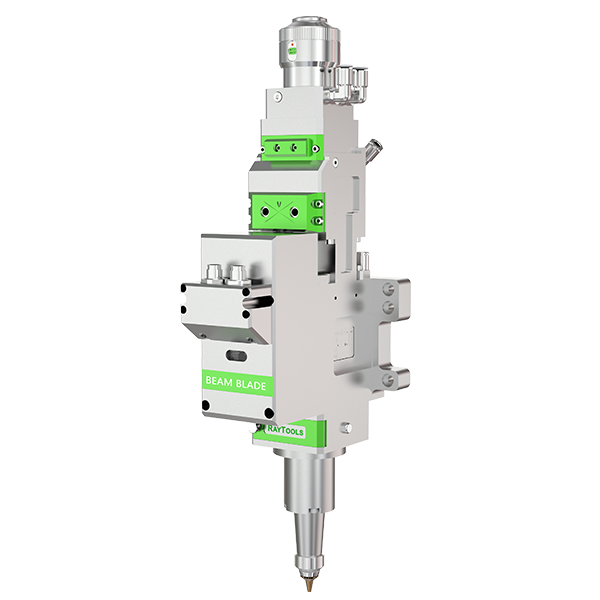

Vikzion Raytools BD04K 3D pipe laser cutting head
Product Features:
- Optimized optical configuration & smooth and efficient flow design.
- Auto focus range: +12 ~ -12mm; adjustment accuracy: 0.05mm.
- D30 compound lens; max fiber input power: 4KW.
- Max. acceleration of drive of focus lens: 10m/s²; max. speed: 6m/min.
- Drawer type lens holder, fast and convenient to replace cover glass.
- Compound lens at collimation lens and focus lens, maximizing optical quality and cutting efficiency.
- QBH interface, compatible with different fiber laser.
1.Product Introduction
Released by RAYTOOLS in 2021, BD04K SERIES auto focus tube cutting heads are equipped with servo motor outside and drive units inside, supporting to move focus lens within 30mm automatically through the linear mechanism. And users can set program to do continuous adjustment of the focus position, so as to perforate thick sheets and auto cut sheets with different thickness and material.
BD04K SERIES products adopt D30 compound lens assembly for beam integration while applying QBH interface with fiber laser. Based on optimized optical and water-cooled design, laser heads can run stably with high power for a long time.
2.Technical parameters
Power level | ≤4000W |
Optical ratio | 100:150; 100:200 |
Optical center adjustment method | Collimation adjustment |
Optical center adjustment range | ±1.5mm |
Focus adjustment method | Focus adjustment |
Focus adjustment range | -12mm to +10mm |
Weight | Approximately 4.8kg |
3.Product advantages
①Excellent Design
Lightweight design and fast acceleration; optimized optical configuration and smooth, efficient airflow significantly improve cutting quality and efficiency.
②High Compatibility
Equipped with a variety of fiber interfaces, including QBH and G5, it is compatible with a variety of mainstream lasers.
③Sealed Optical Path Protection.
Excellent sealing keeps the optical path clean.
④Automatic Spot Adjustment
Automatically adjusts the focus position.
