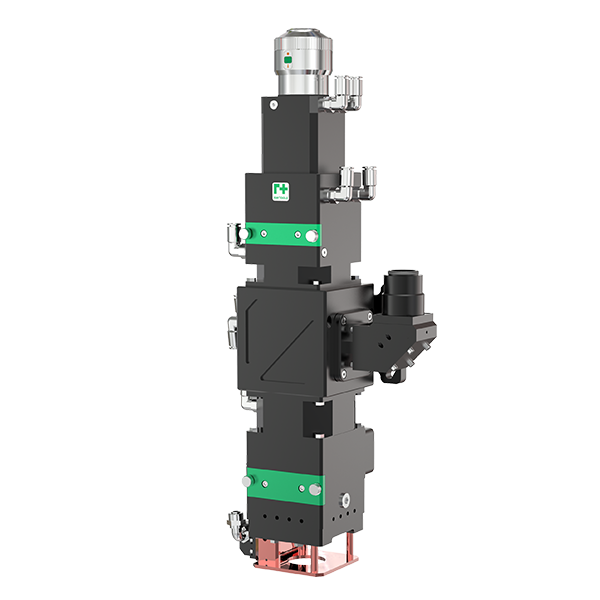

Vikzion Raytools BW12K/BW20K/BW30K Transmissive Laser Welding Head
Product Features:
- High-Power Welding：Capable of withstanding high-power welding of up to 12kW/20kW/BW30K
- Excellent Welding Results：Low porosity, high mechanical properties, and high-quality weld surfaces
- Intelligent Monitoring：Real-time monitoring of the operating temperature of the protective lens
- Drawer-Type Lens Mount：Quick and easy replacement of the protective lens. Three protective lenses effectively protect the collimating and focusing lenses
- Highly Dustproof：Reliable sealing effectively prevents contamination of the optical lenses, extending their service life
- Efficient Cooling：Dual water-cooling design, with water cooling ports on the protective lens mount and laser head, extends continuous operation
1.Product Introduction
The BW12K/BW20K/BW30K is a transmission laser welding head suitable for high-power fiber laser welding scenarios. It can operate stably for a long time in 12kw/20K/30K laser welding scenarios. It has a large weld depth-to-width ratio, easy to complete deep penetration welding, and has excellent welding effects on heavy materials. It can be used with a high-definition CCD to monitor the weld status in real time.
2.Technical parameters
Laser wavelength | 1064nm |
Fiber interfaces | QBH (standard), QD, LLK-B, LLK-D, LOE, Q+ |
Clear aperture | 48mm |
Collimation focal length | 100mm, 150mm |
Focusing focal length | 300mm, 350mm, 400mm |
Protective lens | Ø50mm*8mm |
CCD connector | Standard C/CS interface |
3.Product advantages
①High-Power Welding
Capable of withstanding high-power welding of up to 12kW/20kW/BW30K
②Excellent Welding Results
Low porosity, high mechanical properties, and high-quality weld surfaces
③Intelligent Monitoring
Real-time monitoring of the operating temperature of the protective lens
④Drawer-Type Lens Mount
Quick and easy replacement of the protective lens. Three protective lenses effectively protect the collimating and focusing lenses
⑤Highly Dustproof
Reliable sealing effectively prevents contamination of the optical lenses, extending their service life
⑥Efficient Cooling
Dual water-cooling design, with water cooling ports on the protective lens mount and laser head, extends continuous operation
