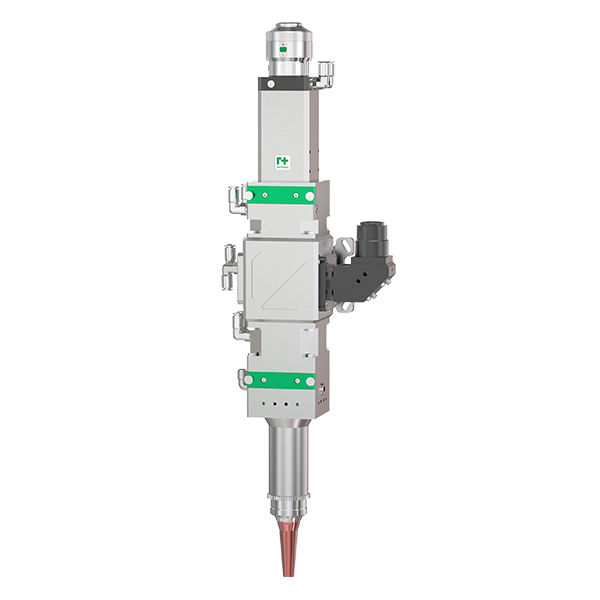

Vikzion Raytools BW08L 8000W Wide Band Laser Welding Head
Product Features:
- High Cost-Effective：Adaptable to the high-power semiconductor and fiber laser welding market demands, suitable for both ferrous and non-ferrous metals
- Intelligent Monitoring：Real-time monitoring of the operating temperature of the collimating and focusing lenses
- Excellent Welding Results：Optimized optical design enables high-speed, high-quality, high-power laser welding
- Efficient Cooling：Both the collimating and focusing lenses are water-cooled, ensuring long-term stable operation and extended service life.
- Comprehensive Expansion Modules：Extensible modules such as seam tracking and positioning functions are available, facilitating automated welding.
- High-Quality Airflow Design：A smooth and efficient fluid flow structure design ensures excellent weld pool protection.
1.Product Introduction
The BW08L is a wide-band, large-aperture laser welding head suitable for semiconductor or fiber laser welding scenarios below 8000W. The 48mm large-aperture design can be used with an annular spot laser. It is resistant to high reflection and is widely used in high-power ferrous and non-ferrous metal welding scenarios. It can be used with a high-definition CCD to monitor weld conditions in real time.
2.Technical parameters
Laser wavelength | 900-1100nm |
Fiber interfaces | QBH (standard), QD, LLK-B, LLK-D |
Clear aperture | 48mm |
Collimation focal length | 100mm, 150mm, 200mm |
Focus focal length | 150mm, 200mm, 250mm, 300mm, 400mm, 500mm |
Weight | Approximately 4.5kg |
CCD connection module | Standard C/CS interface |
3.Product advantages
①High Cost-Effective
Adaptable to the high-power semiconductor and fiber laser welding market demands, suitable for both ferrous and non-ferrous metals
②Intelligent Monitoring
Real-time monitoring of the operating temperature of the collimating and focusing lenses
③Excellent Welding Results
Optimized optical design enables high-speed, high-quality, high-power laser welding
④Efficient Cooling
Both the collimating and focusing lenses are water-cooled, ensuring long-term stable operation and extended service life.
⑤Comprehensive Expansion Modules
Extensible modules such as seam tracking and positioning functions are available, facilitating automated welding.
⑥High-Quality Airflow Design
A smooth and efficient fluid flow structure design ensures excellent weld pool protection.
