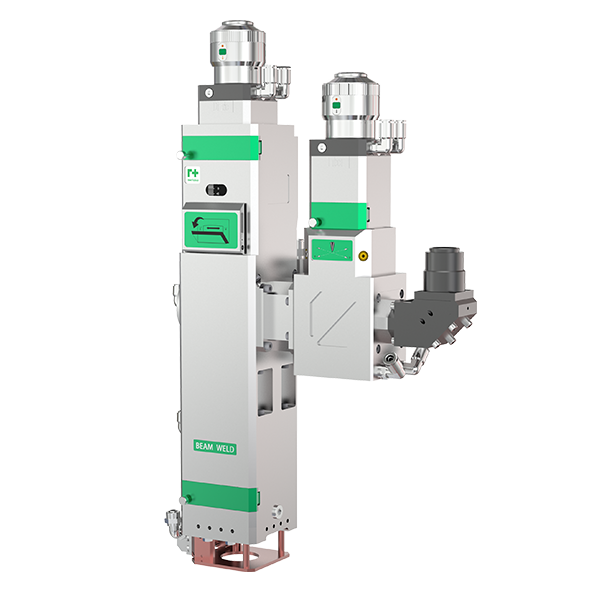

Vikzion Raytools BW06H 6000W Dual Band Composite Laser Welding Head
Product Features:
- Excellent welding results：Mainly used for welding highly reflective materials, improving weld quality and ensuring weld consistency.
- Rich expansion modules：Extensible modules such as seam tracking and positioning functions facilitate automated welding.
- Drawer-style lens holder：Quick and easy replacement of protective lenses.
- Efficient cooling：Dual water-cooling design, with water cooling ports on the protective lens holder and laser head, extends continuous operation.
- Effective dust protection：Reliable sealing effectively prevents contamination of optical lenses, extending service life.
1.Product Introduction
The BW06H is a dual-band composite welding head suitable for fiber + semiconductor composite welding scenarios with a total power of less than 6000W. It can be used with a fiber laser of up to 4000W + a semiconductor laser of 2000W. It uses two laser beams of different wavelengths for welding, greatly optimizing the welding effect of high-reflective materials. It can be used with a high-definition CCD to monitor the weld condition in real time.
2.Technical parameters
Power | 4000W fiber + 2000W semiconductor |
Aperture | 30mm fiber, 48mm semiconductor |
Laser Wavelength | 1064nm fiber, 915/450nm semiconductor |
Weight | Approximately 12kg |
3.Product advantages
①Excellent welding results
Mainly used for welding highly reflective materials, improving weld quality and ensuring weld consistency.
②Rich expansion modules
Extensible modules such as seam tracking and positioning functions facilitate automated welding.
③Drawer-style lens holder
Quick and easy replacement of protective lenses.
④Efficient cooling
Dual water-cooling design, with water cooling ports on the protective lens holder and laser head, extends continuous operation.
⑤Effective dust protection
Reliable sealing effectively prevents contamination of optical lenses, extending service life.
