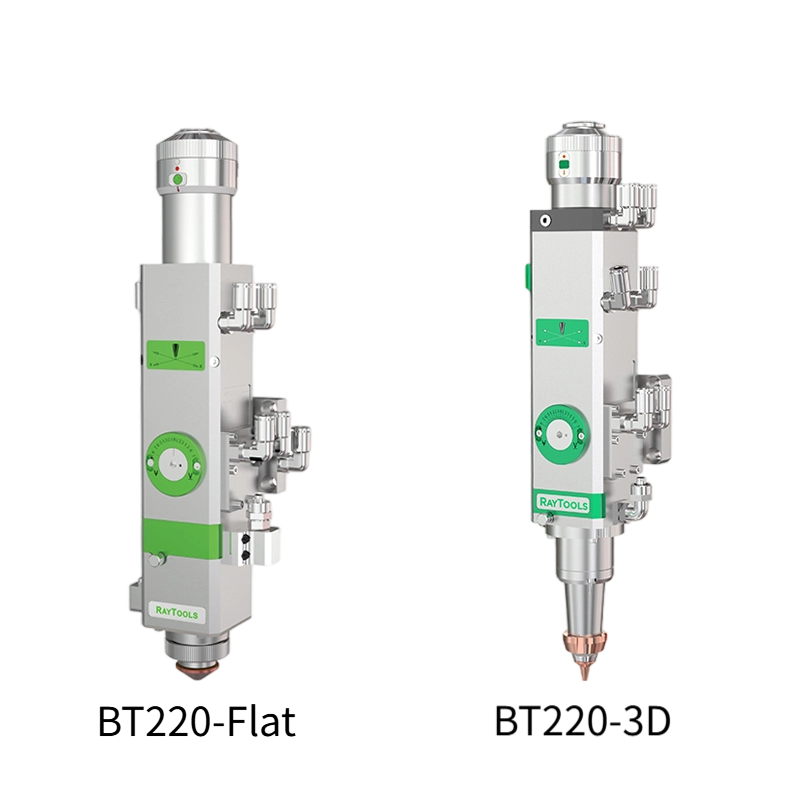

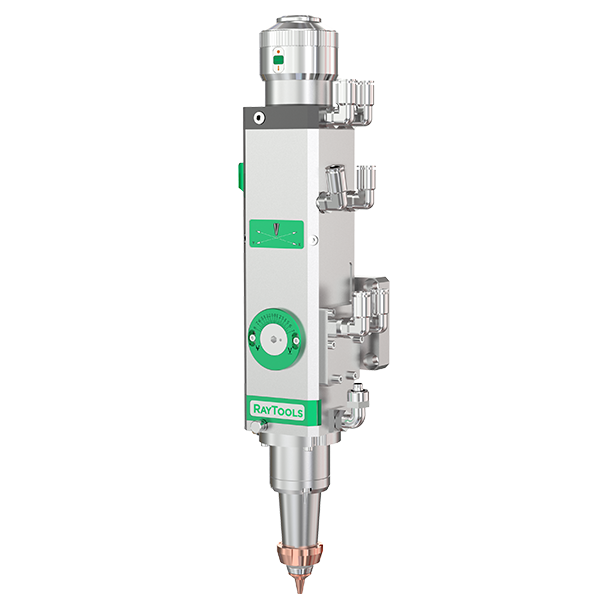

Vikzion Raytools BT220 2000W manual focusing laser cutting head
Product Features
- Light and small
- Various mounting ways such as screw mounting and dovetail mounting.
- Multiple applications including flat cutting, 3D cutting, etc.
- Manual adjustment of focus position, convenient to operate
1.Product Introduction
The BT220 series is a low to medium power cutting head with a conventional power level of 2kw. The product is equipped with QBH fiber optic interface and can be adapted to various mainstream lasers. Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.
2.Technical parameters
| Model | BT220 | |
| Wavelength | 1064nm | |
| Fiber Interface | QBH | |
| Power Rating | 2kW | |
| Flat | Collimation Length (fC) | 75/100mm |
| Focusing Length (fF) | 100/125mm | |
| 3D | Collimation Length (fC) | 75/100mm |
| Focusing Length (fF) | 150mm | |
| NA max | 0.13 | |
| Focus Range-Vertical | -8mm…+7mm | |
| Focus Range-Horizontal | -1mm…t1mm | |
| Mounting Size of Cutting Head | 4×M6.6 | |
| Mounting Size of Pin | 2×φ6 | |
| Mounting Size of Preamplifier | 4xM3 | |
| Cutting Gas | φ8, max.25bar | |
| Water Cooling | φ6, max.5bar, min.1.8L/min | |
| Operating Temperature | 5℃～55℃ | |
| Humidity | 30%～95%,without condensing | |
| Weight | About 2.3kg | |
3.Product advantages
①High cost-effectiveness
The preferred choice for economical laser cutting equipment with a power of 2000W or less. Manually adjust the focus position, easy to operate.
②Excellent design
Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency. There are multiple installation methods, including screw installation and dovetail groove installation.
③Exquisite structure
Lightweight and compact in size, it reduces the load requirements of the machine tool and improves cutting speed and quality.
④Multiple scenario applications
Including various applications such as planar cutting and 3D cutting
