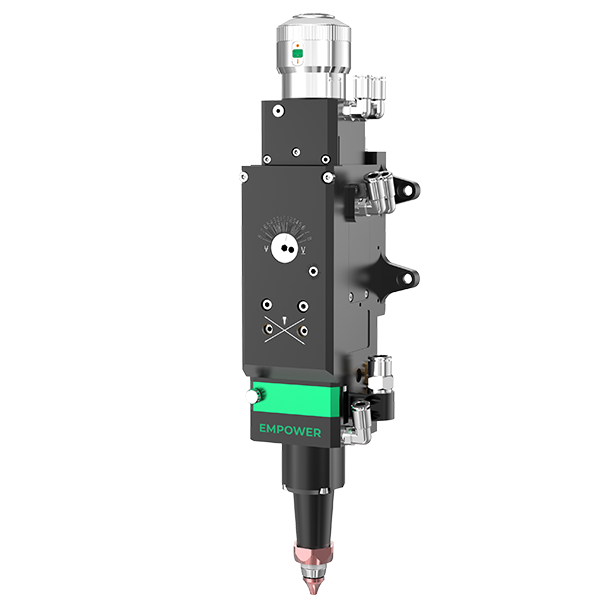

Vikzion Raytools BT06K 6000W manual laser cutting head
Product Features:
- Dual optical protection：4 sets of protective lenses extend the lifespan of the core lens, and multiple protections enhance the sealing level inside the core cavity
- Stray light detection：Equipped with a high response protective mirror stray light detection module as standard, effectively preventing the lens from exploding due to contamination
- Efficient water cooling/air cooling：The focusing mirror, collimating mirror, and nozzle are all equipped with built-in cooling functions, effectively solving the problem of cutting heat generation; Standard nozzle cooling air path
- Optimize mechanical/waterway design：Lightweight design, overall weight 3.0kg; collision resistant structure reduces losses caused by misoperation
1.Product Introduction
The BT06K lightweight cutting head is a manually focused cutting head with a power of 6000w, 4 sets of protective lenses, extending the life of the core lens, and multiple protections to improve the sealing level inside the core cavity. The focusing mirror, collimating mirror, and nozzle all have built-in cooling functions, effectively solving the problem of cutting heat generation. Commonly used for cutting pipes and H-steel in practice.
2.Technical parameters
fiber optic interface | QBH |
Applicable wavelength | 1080nm |
laser power | 6kW |
NA | 0.13 |
Optical ratio | 100:200 |
Focus adjustment level range | -1.5～+1.5mm |
Focus adjustment vertical range | -32～+32mm |
Cutting gas interface | Ф10 ，Max 25bar |
Nozzle cooling air interface | Φ8，Max 5bar |
Water cooling interface | Ф6,Max 5bar,Min volume flow rate:1.5L/min |
Operating Temperature | 5℃~55℃ |
humidity | 30%~95%, no frost |
weight | about 4kg |
3.Product advantages
①Dual optical protection
4 sets of protective lenses extend the lifespan of the core lens, and multiple protections enhance the sealing level inside the core cavity
②Stray light detection
Equipped with a high response protective mirror stray light detection module as standard, effectively preventing the lens from exploding due to contamination
③Efficient water cooling/air cooling
The focusing mirror, collimating mirror, and nozzle are all equipped with built-in cooling functions, effectively solving the problem of cutting heat generation; Standard nozzle cooling air path
④Optimize mechanical/waterway design
Lightweight design, overall weight 3.0kg; collision resistant structure reduces losses caused by misoperation
