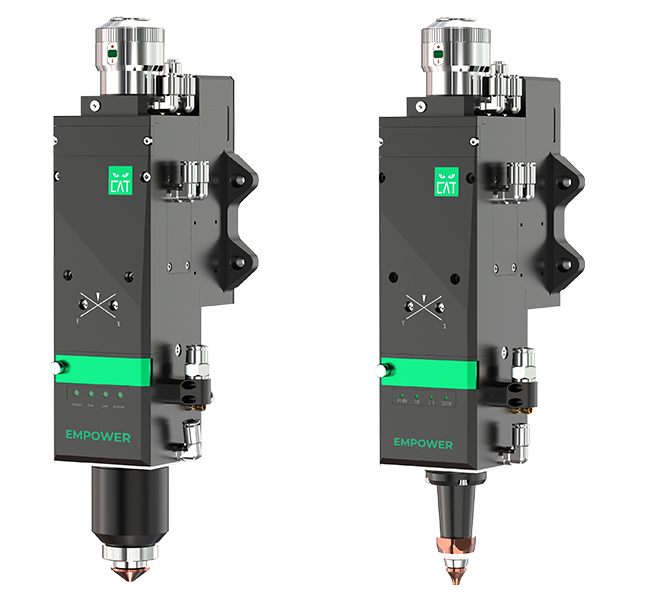

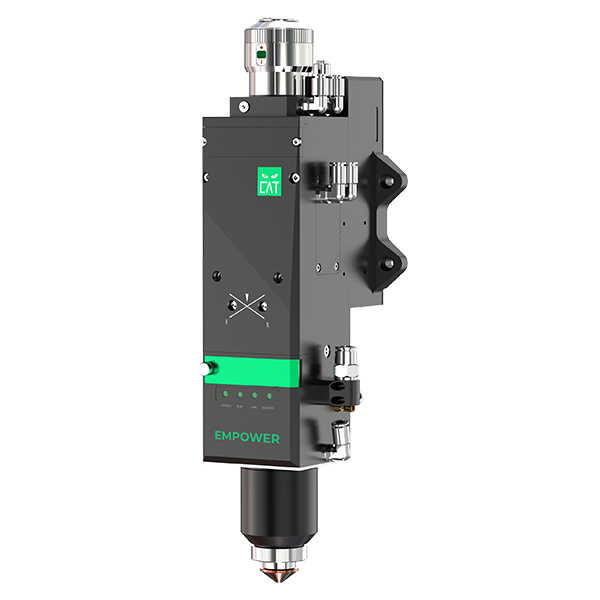

Vikzion Raytools BS06K-CAT 6000W Intelligent Laser Cutting Head
Product Features:
- Double Optical Protection:：Four sets of protective lenses extend the life of the core lens, and multiple protections enhance the sealing level of the core cavity.
- Flexible Control：Supports analog/pulse-controlled focusing units or EtherCAT bus communication and bus-controlled focusing units, allowing users to achieve continuous and rapid focus position adjustment through program settings.
- Optimized Mechanical/Waterway Design：Simplified lens installation reduces the difficulty and cost of repair and maintenance; anti-collision structures minimize damage caused by misoperation.
- Efficient Cooling：More precise gas control and more stable cross-section quality
- Stray Light Detection：A high-response protective lens stray light detection module is standard, effectively preventing lens cracking due to contamination.
- Built-in Capacitor Amplifier：Optional built-in capacitor amplifier for more precise and stable height tracking
1.Product Introduction
The BS06k-CAT high-power intelligent cutting head offers 6000W of power and features four sets of protective lenses to extend the life of the core lens. Multiple protection features enhance the sealing level of the core cavity and support EtherCAT bus communication and bus-controlled focusing units.
2.Technical parameters
Power | ≤6000W |
Autofocus range | -17mm to +17mm (F150mm); |
Autofocus accuracy | 0.01mm |
Autofocus speed | ≤200mm/s |
Autofocus acceleration | ≤10m/s² |
Numerical aperture | 0.14 |
Assist gas pressure | ≤30bar |
Nozzle specifications | D28*M11 (flat model); |
Weight | Approximately 5kg (flat model); |
3.Product advantages

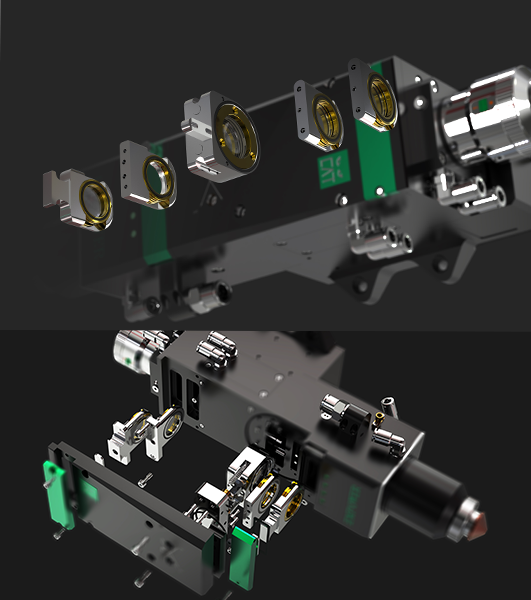

①Double Optical Protection:
Four sets of protective lenses extend the life of the core lens, and multiple protections enhance the sealing level of the core cavity.
②Flexible Control
Supports analog/pulse-controlled focusing units or EtherCAT bus communication and bus-controlled focusing units, allowing users to achieve continuous and rapid focus position adjustment through program settings.
③Optimized Mechanical/Waterway Design
Simplified lens installation reduces the difficulty and cost of repair and maintenance; anti-collision structures minimize damage caused by misoperation.
The entire BS series features standard anti-corrosion technology to prevent long-term use of water cooling water. Water leaks
Nozzle cooling air circuit standard
④Efficient Cooling
More precise gas control and more stable cross-section quality
Opening air protection and foolproof design reduce the chance of lens contamination
One-touch intelligent air pressure calibration makes nozzle and process changes more convenient and worry-free
Real-time monitoring of the protective lens temperature during cutting effectively reduces poor cutting results caused by protective lens contamination
⑤Stray Light Detection
A high-response protective lens stray light detection module is standard, effectively preventing lens cracking due to contamination.
⑥Built-in Capacitor Amplifier
Optional built-in capacitor amplifier for more precise and stable height tracking
