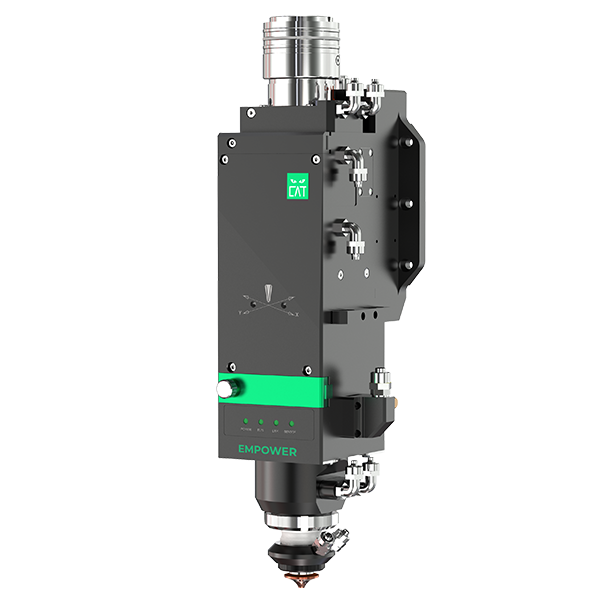

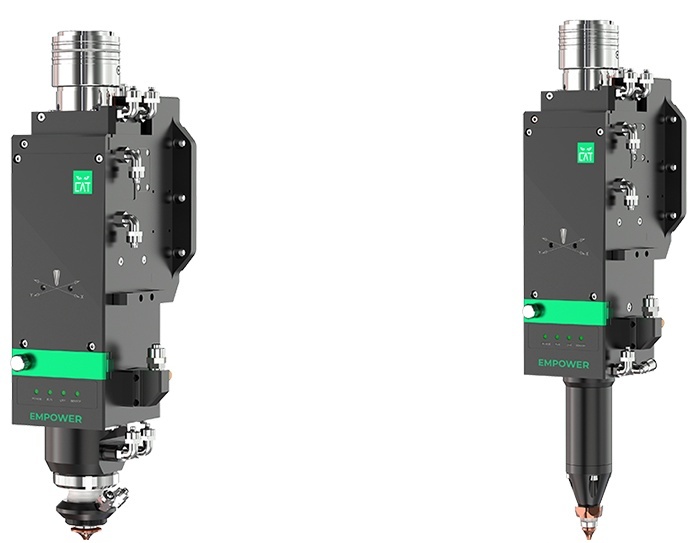

Vikzion Raytools BS012K-CAT 12000W Intelligent Laser Cutting Head
Product Features:
- Double Optical Protection:Four sets of protective lenses extend the life of the core lens, and multiple protections enhance the sealing level of the core cavity.
- Flexible Control:Supports analog/pulse control focusing units or EtherCAT bus communication and bus-controlled focusing units, allowing users to achieve continuous and rapid focus position adjustment through program settings.
- Optimized Mechanical/Waterway Design：Simplified lens installation reduces the difficulty and cost of repair and maintenance; anti-collision structure reduces losses caused by misoperation.
- High-efficiency cooling：More precise gas control and more stable cross-section quality
- Stray Light Detection：Standard high-response lens stray light detection module effectively prevents lens cracking due to contamination
- Built-in capacitor amplifier：Optional built-in capacitor amplifier ensures more precise and stable height tracking
- Perforation Detection/Process Monitoring：Compatible with Jiaqiang CNC systems, standard perforation detection and process monitoring
1.Product Introduction
The BS12K-CAT version features a built-in driver board for the cutting head, supporting analog/pulse-controlled focusing units or EtherCAT bus communication and bus-controlled focusing units. It can be adapted to the Jiaqiang CNC system and comes standard with perforation detection and process monitoring.
2.Technical parameters
Fiber optic interface | QBH, QD, Q+, LOE 3.1, LOE 3.2 |
Applicable wavelength | 1080nm |
Power | ≤12kW |
Value | 0.13 |
Optical ratio | 100:220 |
Horizontal focus adjustment range | -1.5mm to +1.5mm |
Vertical focus adjustment range | -40mm to +40mm |
Operating voltage | 24V ±10%, minimum 3A |
I/O interface | Switch output current limited to 30mA |
Nozzle specifications | D28*M11 (flat model); |
Weight | Approximately 8.2kg |
3.Product advantages
①Double Optical Protection
Four sets of protective lenses extend the life of the core lens, and multiple protections enhance the sealing level of the core cavity.
②Flexible Control
Supports analog/pulse control focusing units or EtherCAT bus communication and bus-controlled focusing units, allowing users to achieve continuous and rapid focus position adjustment through program settings.
③Optimized Mechanical/Waterway Design
Simplified lens installation reduces the difficulty and cost of repair and maintenance; anti-collision structure reduces losses caused by misoperation.
The entire BS series features standard anti-corrosion technology to prevent corrosion and water leakage caused by long-term water cooling.
The excellent nozzle water cooling structure significantly improves stability during steel cutting.
④High-efficiency cooling
More precise gas control and more stable cross-section quality
Open-gas protection and foolproof design reduce the chance of lens contamination
One-touch intelligent gas pressure calibration makes nozzle and process changes more convenient and worry-free
Real-time monitoring of the protective lens temperature during cutting effectively reduces cut defects caused by lens contamination
⑤Stray Light Detection
Standard high-response lens stray light detection module effectively prevents lens cracking due to contamination
⑥Built-in capacitor amplifier
Optional built-in capacitor amplifier ensures more precise and stable height tracking
⑦Perforation Detection/Process Monitoring
Compatible with Jiaqiang CNC systems, standard perforation detection and process monitoring
