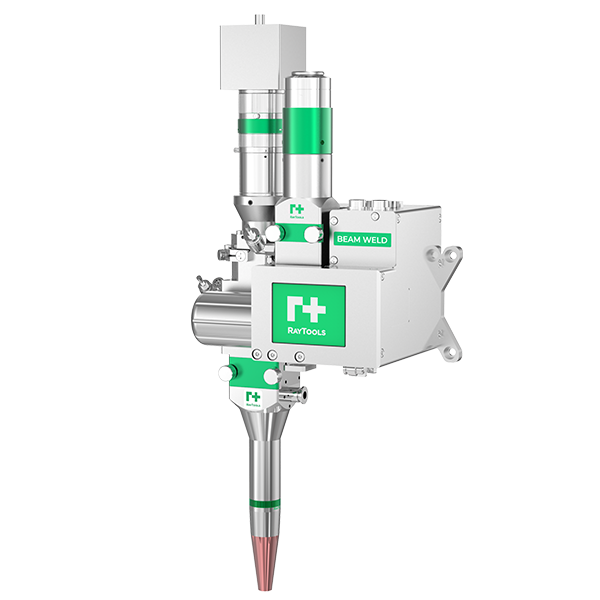

Vikzion Raytools BF03S 3000W Swinging Laser Welding Head
Product Features:
- Rich Modes：Display control, compatible with offline and PC-controlled operating modes
- Multiple Swing Patterns：Eight welding patterns to suit different process requirements
- Optimized Design：Dual protective windows, dust and slag protection, efficient water cooling, stable and reliable
- Rich Configurations：Cameras, industrial lenses, monitors, and blue light sources available
- High-Quality Optical Solutions：Optimized for monitoring, ensuring clear visibility of the welding process
- Stable and Convenient：Integrated drive and control, strong anti-interference capabilities, and simple external wiring
1.Product Introduction
The BF03S is a laser welding head suitable for oscillating laser welding applications under 3000W. Its dual-motor oscillation mechanism allows for diverse oscillation modes and a wide range of applications. Its integrated drive and control design simplifies laser head installation. It can be equipped with a high-definition CCD to monitor weld conditions in real time. Its compact size and light weight make it suitable for most low-power laser welding applications.
2.Technical parameters
Power | ≤3000W |
Collimation Focal Length | 100mm; 125mm |
Focus Length | 200mm; 250mm; 300mm |
Scanning Range | X: 0-5mm; Y: 0-5mm |
Frequency | 500Hz |
Clear Aperture | 20mm |
Fiber Optic Interface | QBH |
Weight | Approximately 3kg |
3.Product advantages
①Rich Modes
Display control, compatible with offline and PC-controlled operating modes
②Multiple Swing Patterns
Eight welding patterns to suit different process requirements
③Optimized Design
Dual protective windows, dust and slag protection, efficient water cooling, stable and reliable
④Rich Configurations
Cameras, industrial lenses, monitors, and blue light sources available
⑤High-Quality Optical Solutions
Optimized for monitoring, ensuring clear visibility of the welding process
⑥Stable and Convenient
Integrated drive and control, strong anti-interference capabilities, and simple external wiring
