Vikzion Raytools BH02K 2000W Dual Vibration Mirror Handheld Laser Welding Head
Product Features:
- Dual-galvanometer handheld welding head：Lightweight, compact, easy to operate, and ergonomically designed
- Safety Protection：Multiple safety features prevent the light from escaping from the workpiece, ensuring high safety
- Optimized Design：Dual protective windows for dust and slag protection, ensuring stable and reliable operation
- Process Advantages：Eight oscillation patterns to meet diverse customer process requirements
- Optional dual wire feed function：Optional dual wire feeder and dual wire feed assembly for welding thick plates and wide seams
1.Product Introduction

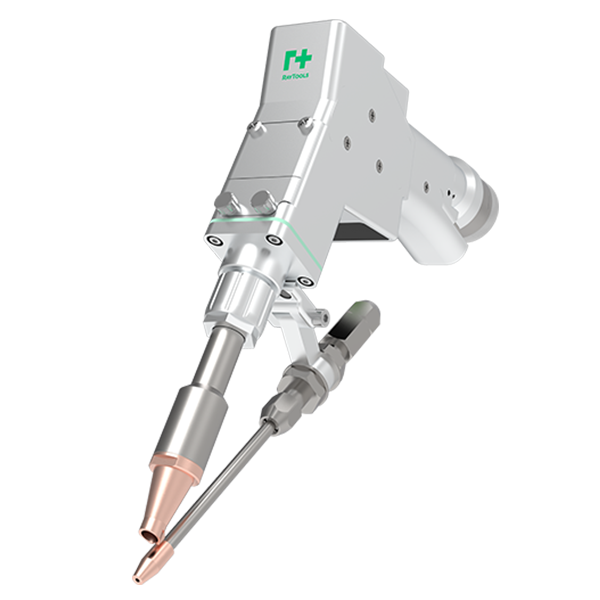

BH02K is a dual-galvanometer handheld laser welding head suitable for power below 2000W. It has 8 swing patterns and can achieve more different weld forming effects. The matching laser control system is compatible with manipulators, platform controls, etc. It is widely used in cabinets, sheet metal, stainless steel doors and windows hardware and other industries.
2.Technical parameters
Power | ≤2000W |
Aperture | 8mm |
X-axis oscillation range | 0-5mm |
Y-axis oscillation range | 0-5mm |
Applicable wavelength | 1070nm |
Weight | Approximately 1.0kg |

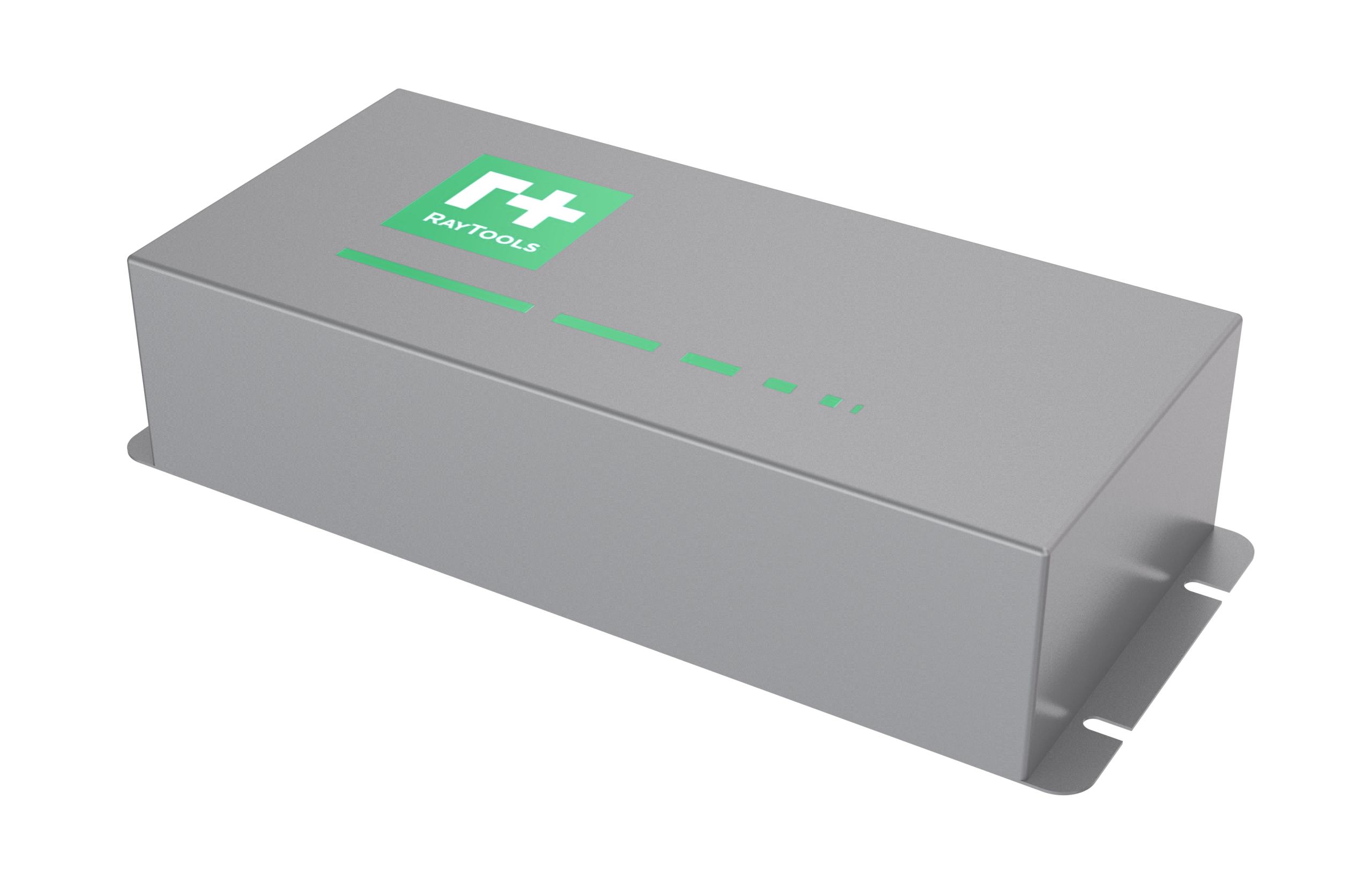

Control method | Control box |

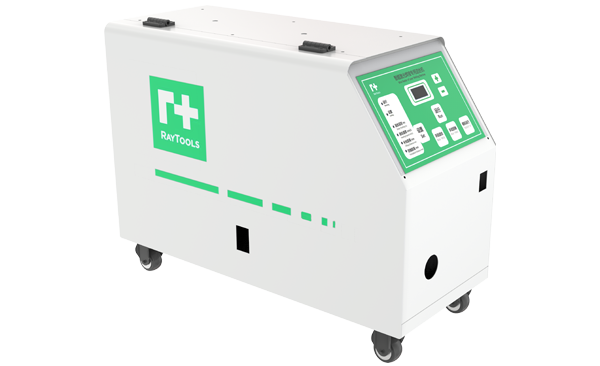

Optional accessories | Single wire feeder |
3.Product advantages
①Dual-galvanometer handheld welding head
Lightweight, compact, easy to operate, and ergonomically designed
②Safety Protection
Multiple safety features prevent the light from escaping from the workpiece, ensuring high safety
③Optimized Design
Dual protective windows for dust and slag protection, ensuring stable and reliable operation
④Process Advantages
Eight oscillation patterns to meet diverse customer process requirements
⑤Optional dual wire feed function
Optional dual wire feeder and dual wire feed assembly for welding thick plates and wide seams
