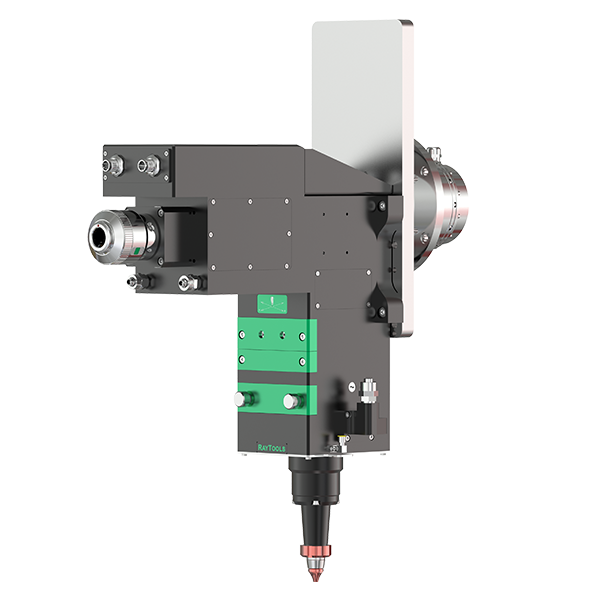

Vikzion Raytools GF403 Single Pendulum Right Angle Output Laser Cutting Head
Product Features:
·The entire cutting head is precision-machined from aircraft-grade aluminum.
·The optical fiber enters the cutting head through a QBH connector.
·The oscillating axis rotates the cutting head ±45° via a precision electric actuator.
·The focusing axis uses a linear module to move the focusing lens to adjust the focal position.
·The cutting head’s fiber optic connector has a right-angle output for easy fiber placement.
·The entire cutting head boasts excellent rigidity, ensuring precision and cutting stability.
1.Product Introduction
When beveling pipes or workpieces requires beveling, a swing mechanism is required to drive the cutting head. The GF403 structural product serves as an additional mechanical drive system and is equipped with a precision laser cutting head to achieve high-efficiency and high-precision beveling cutting.
2.Technical parameters
Power level | Dependent on laser head power |
Numerical aperture | 0.14 |
Optical ratio | 100:200 |
Maximum swing speed | 2 rev/s |
Focusing speed | ≤200 mm/s |
Maximum swing axis acceleration | 125 rad/s² |
Focusing axis acceleration | ≤10 m/s² |
Swing travel | ±45° |
Focal adjustment range | -40 mm to +40 mm |
Swing axis positioning accuracy | 0.005° |
Focusing axis positioning accuracy | 0.01 mm |
Weight | Approximately 9.5 kg |
3.Product advantages
①The entire cutting head is precision-machined from aircraft-grade aluminum.
②The optical fiber enters the cutting head through a QBH connector.
③The oscillating axis rotates the cutting head ±45° via a precision electric actuator.
④The focusing axis uses a linear module to move the focusing lens to adjust the focal position.
⑤The cutting head’s fiber optic connector has a right-angle output for easy fiber placement.
⑥The entire cutting head boasts excellent rigidity, ensuring precision and cutting stability.
