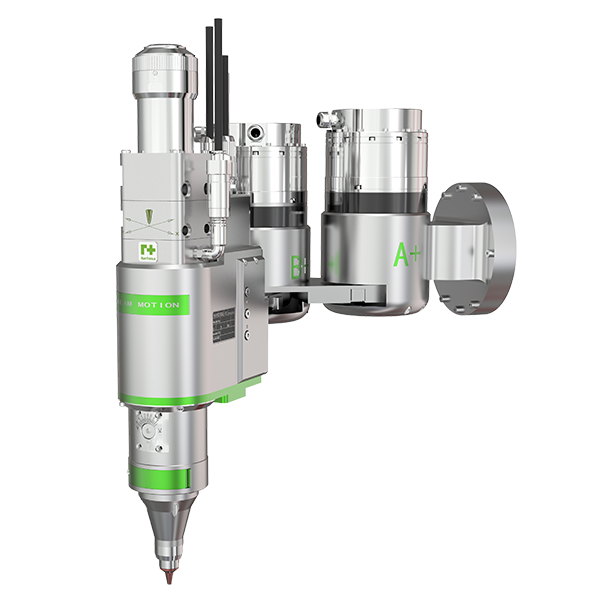

Vikzion Raytools GF102 Robot Small Profile Insertion Subsystem
Product Features:
- Designed for high-precision small contour cutting：Enables high-precision and high-speed robot cutting, achieving ±0.1mm accuracy for small contour cutting, even for a 1mm diameter circle.
- Built-in servo：Built-in servo function eliminates the need for a robot to perform complex servo motions.
- Includes cutting software.：Comprehensive human-machine interface, full functionality, and easy operation.
- Excellent structure：Compact, compact, and lightweight, it integrates perfectly with robots.
- Built-in preset patterns：128 built-in preset patterns, eliminating the need for teach-in programming.
- Supports I/O monitoring：Comprehensive software technology, select from preset cutting patterns.
1.Product Introduction
In the field of 3D laser cutting, when a robotic arm cannot meet the required trajectory accuracy, the GF102 SCARA structure can be used as an additional mechanical drive system, coupled with a precision laser cutting head. The robotic arm provides positioning, while the GF102 SCARA structure provides high-precision and efficient motion. The GF102 SCARA structure is flexible and can be installed on a robotic arm or machine tool, or it can be used independently for high-precision cutting operations.
2.Technical parameters
Maximum cutting diameter | 45mm |
Maximum single-axis speed | 75 rpm |
Maximum single-axis acceleration | 137 rad/s² |
Positioning accuracy | ±0.02mm |
Repeatability | ±0.01mm |
Weight (compatible with GF101 cutting head) | Approximately 11.0kg |
3.Product advantages
①Designed for high-precision small contour cutting
Enables high-precision and high-speed robot cutting, achieving ±0.1mm accuracy for small contour cutting, even for a 1mm diameter circle.
②Built-in servo
Built-in servo function eliminates the need for a robot to perform complex servo motions.
③Includes cutting software.
Comprehensive human-machine interface, full functionality, and easy operation.
④Excellent structure.
Compact, compact, and lightweight, it integrates perfectly with robots.
⑤Built-in preset patterns:
128 built-in preset patterns, eliminating the need for teach-in programming.
⑥Supports I/O monitoring.
Comprehensive software technology, select from preset cutting patterns.
