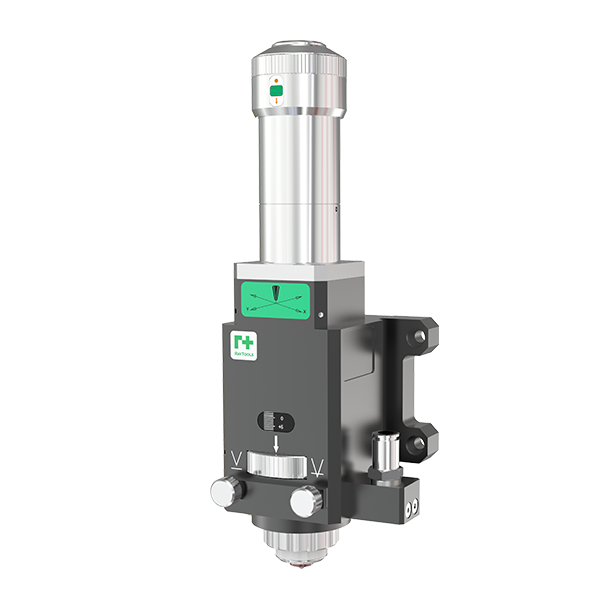

Vikzion Raytools FM220 500W/1500W Fine Laser Cutting Head
Product Features:
- The focusing lens group is composed of a plurality ofprecision lenses
- Knob type of focus adjustment, meticulous and flexible
- Adjustable range is 10mm, accuracy is 0.05mm
- Drawer-type of lens mount, quick and easy access to the cover glass
- Option with small diameter of nozzle tip, minimum is 0.3mm
- With a variety of optical interfaces, can be adapted with a variety of fiber lasers
- Optional 355nm and 532nm wavelength lenses
- Optional CCD to monitor the cutting gap, and the fiber angle has a variety of configuration options
- Optional introduction nozzle or height sensor (In addition to 50mm focal length)
1.Product Introduction
FM220 is a low-power cutting head with a power level of 0.5/2.0kW. The product is equipped with OBH and QCS fiber interfaces and can be adapted to various mainstream lasers. Short focus design is usually used for fine cutting and precision machining of materials smaller than 0.5mm.
Note: FM220 is mainly used for 1500w, and for processing heads with 500w power, it is necessary to consult sales personnel in advance to check the inventory situation!
2.Technical parameters
fiber optic interface | QBH/QCS |
power level | 0.5kw/2kw |
Applicable wavelength | 1064nm |
Optical ratio | 75:50； 100:100； 100:80； 100:60 |
Operating Temperature | 5℃～55℃ |
atmospheric pressure | ≤25bar |
Nozzle specifications | D12*M8 |
weight | ～1.92kg |
Focus adjustment level range | -1～+1mm |
Focus adjustment vertical range | -5～+5mm |
3.Product advantages
①Focusing uses a composite lens group composed of multiple precision lenses.
②Knob style focus adjustment allows for precise adjustment of the focus.
③The minimum scale is 0.05mm and the adjustable range is 10mm.
④Adopting a drawer style mirror holder, the replacement of protective lenses is fast and simple.
⑤Suitable for small aperture nozzles, with a minimum nozzle aperture of 0.3mm.
⑥Equipped with multiple fiber optic interfaces, it can be adapted to various lasers.
⑦Optional 355nm and 532nm wavelength lenses (customized).
⑧Can be paired with CCD interface for real-time monitoring of cutting seams, and multi angle fiber optic interface is optional.
⑨Equipped with sensing nozzle connectors and height sensors.
