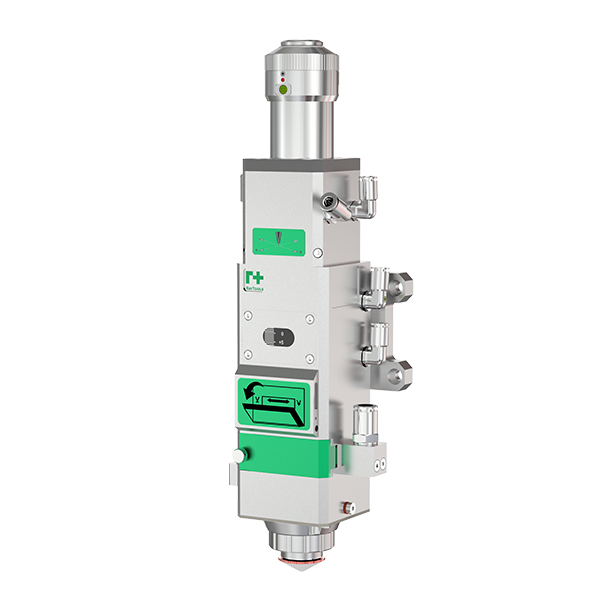

Vikzion Raytools BT240S 3000W manual focusing laser cutting head
Product Features:
- Optimized optical configuration and smooth and efficient airflow design;
- With many kinds of optical fiber interfaces and can be adapted to all kinds of fiber lasers.
- Can calibrate dial test precision focus adjustment with the adjustable range of 20mm and the precision of 0.05mm;
- Improved to be in the structure of collimation and focus double-drawer protective lens；
- Increase the function of replacing of dust-proof of focus protective lens;
- Nozzles, focus lens and collimating mirrors all have a cooling structure;
- Increase the active anti-collision function (this function can be realized only with the corresponding sensor);
- Carry out gas path optimization to make the auxiliary cutting gas more concentrated and improve the cutting efficiency and cutting quality;
- Improve the structure of QBH connecting base, which enhances reliability;
- Increase the indication and correction function of “zero focus” scale;
- Tight sealing design greatly reduces the contamination probability of lens.
1.Product Introduction
BT240S is a low to medium power cutting head with a conventional power level of 3kW. The product is equipped with QBH fiber optic interface and can be adapted to various mainstream lasers. Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.
2.Technical parameters
fiber optic interface | QBH |
power level | 3.3KW |
Optical ratio (flat) | 100:125; 100:150; 100:200 |
Optical ratio (3D) | 75:155:100:155 |
Auxiliary gas pressure | ≤25bar |
Focus level adjustment range | -1～+1mm |
Vertical adjustment range of focus | -10～+10mm |
weight | ～3.5kg |
Optical aperture | 28mm |
Nozzle specifications | Flat：D32*M14;3D：D15*M8 |
3.Product advantages
①Highly dustproof
Dust proof rating IP65, fully enclosed optical path, with almost zero possibility of lens contamination.
②Efficient water cooling
The focusing mirror, collimating mirror, and nozzle all have built-in cooling functions, effectively solving the problem of cutting heat generation.
③Dynamic zero focus
The focus scale can be flexibly adjusted to unify the zero focus position, eliminating the hassle of adjusting process parameters.
④Optimize structural design
Integrated body design, improved QBH fiber optic interface no longer gets stuck due to water leakage, rust and other reasons.
